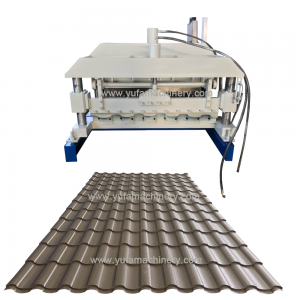

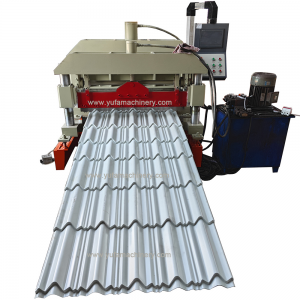

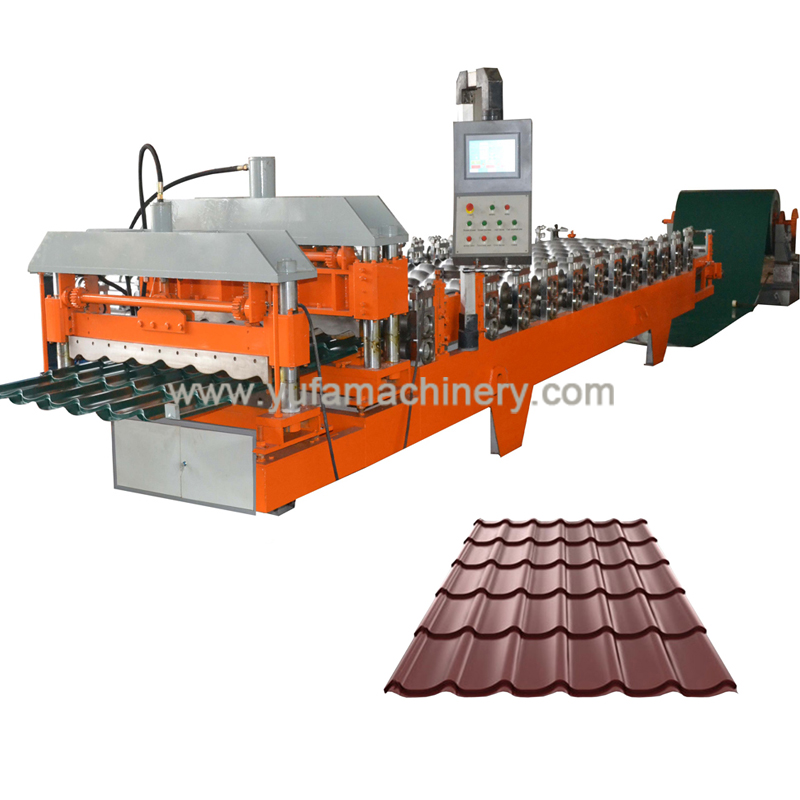

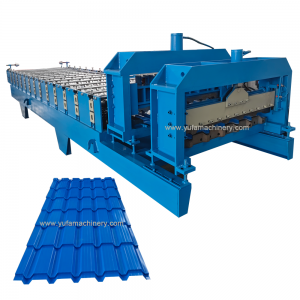

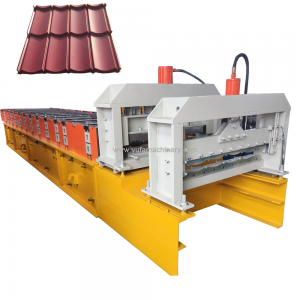

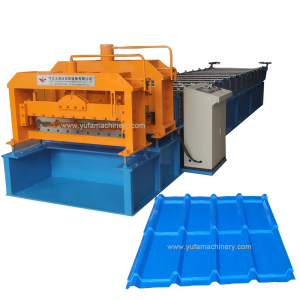

Metal glazed step tile roofing panel roll forming machine

The colored metal sheets produced by glazed tile roll forming machine look beautiful and modern. They

are widely used for the factory, hotel, exhibition,roof of garden, centre and villa.

Click Here to check the video

Material :

Feeding width :1250mm

Effective Width :1000mm

Thickness range :0.3-0.8mm

Type :GI&PPGI

Yiled Strength :235-345MPA

Machine Working Process:

Decoiler--Feeding table --Film  part --Automatic precutter --Forming parts --Electric control box --Hydraulic

automatic cutter --Receiving table

Machine Components:

1.）Manual Decoiler

      Weight capacaity 5 tons , Coil width 1250mm.  It will support the coil for glazed tile roofing machine.

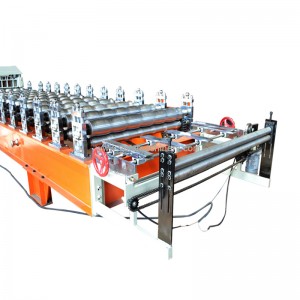

2.)Feeding Part:

    This is the feeding parts for the step tils roofing machine. Use Slider type easy to adjust and fix . Also have the Film and fully automatic

pre cutter ,zero waste.

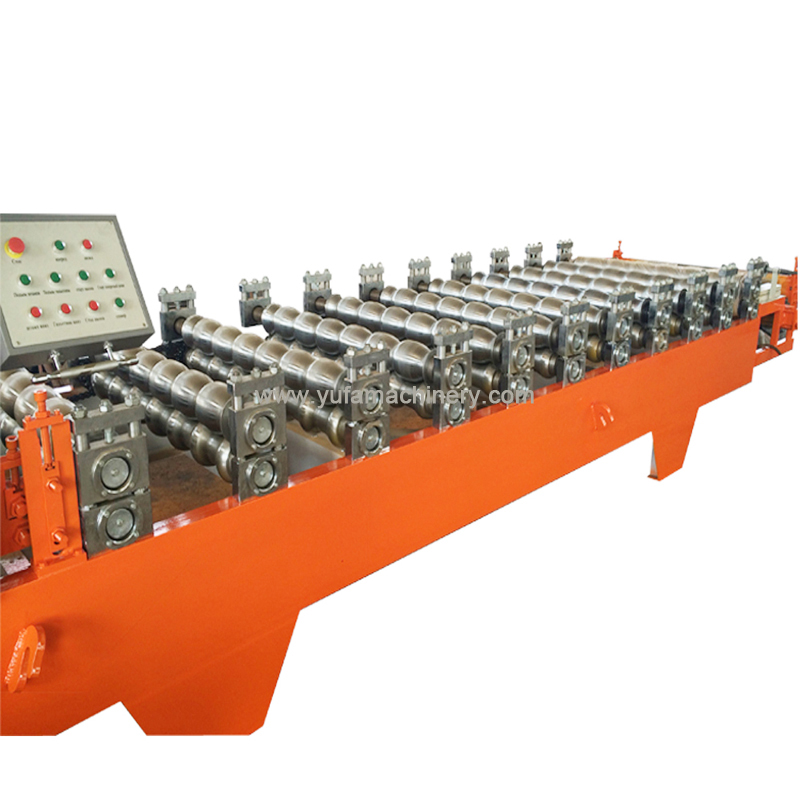

3.) Forming parts:

This is forming part is the European standard. Use separate 45mm thickness station box , easy for customers to adjust . Stronger and much more beautiful.

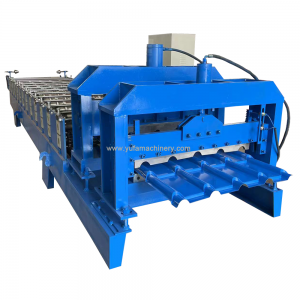

4.)Hydraulic Cutter & Pressing Mould:

We use the post guide type cutter and pressing parts, also the blade and mold processing is updated according to the European standard.

5.)Receiving Table:
