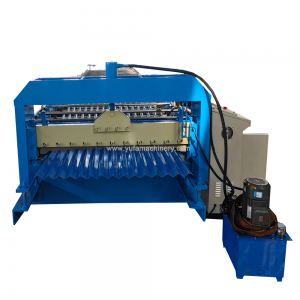

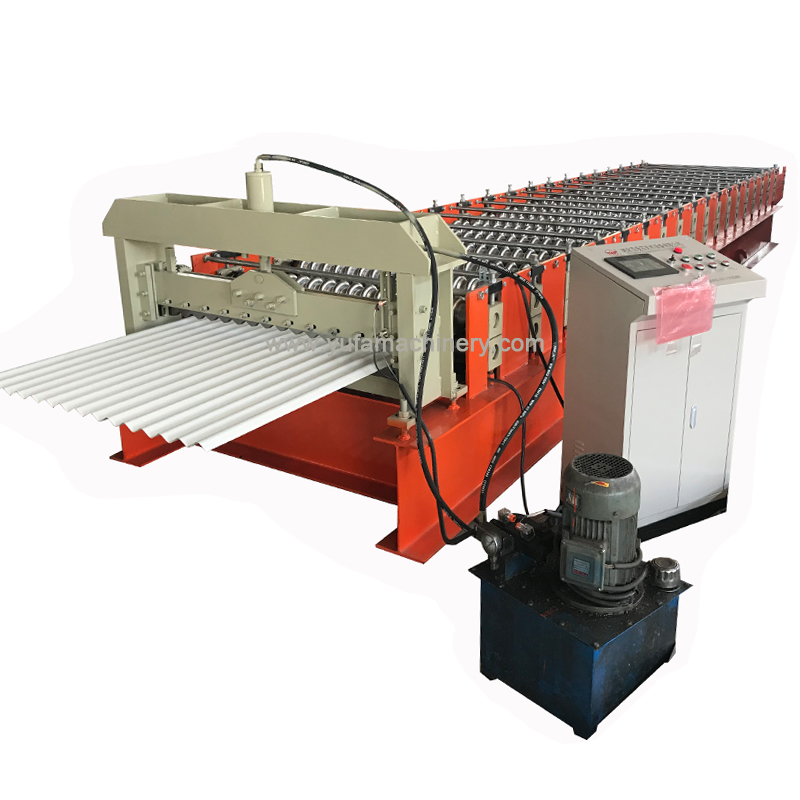

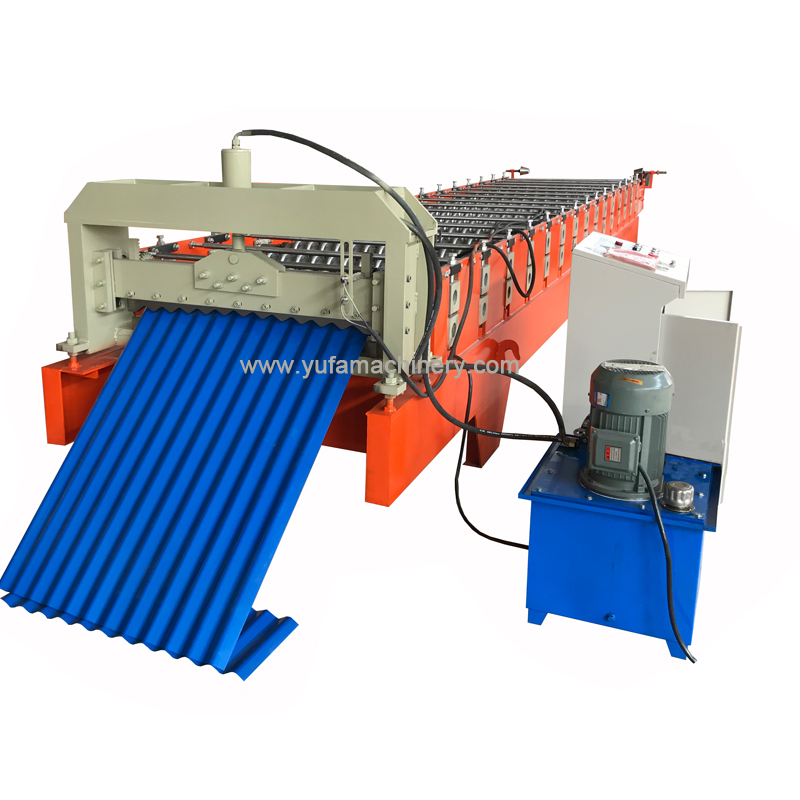

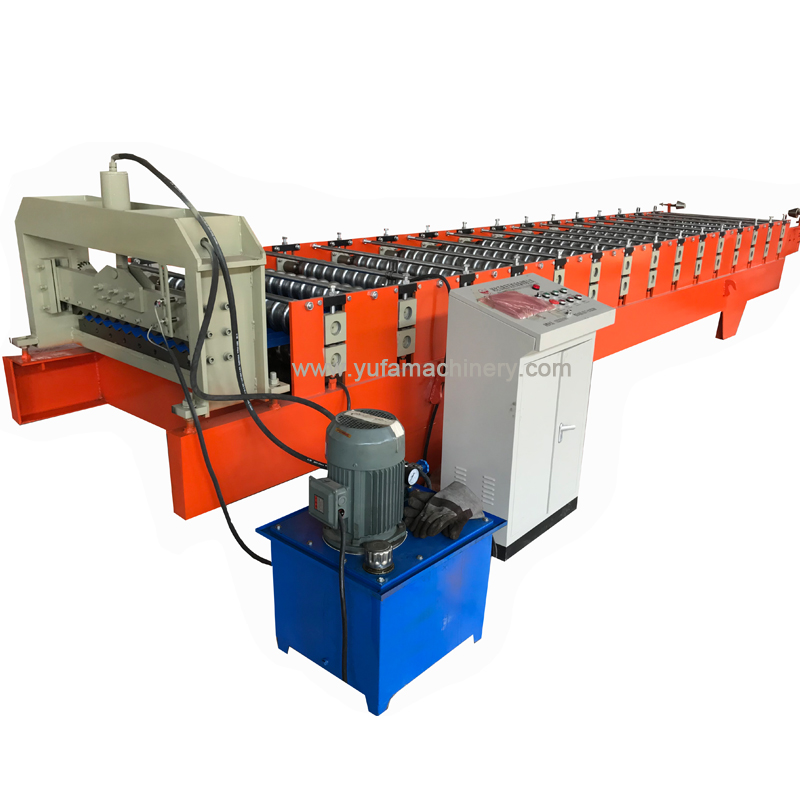

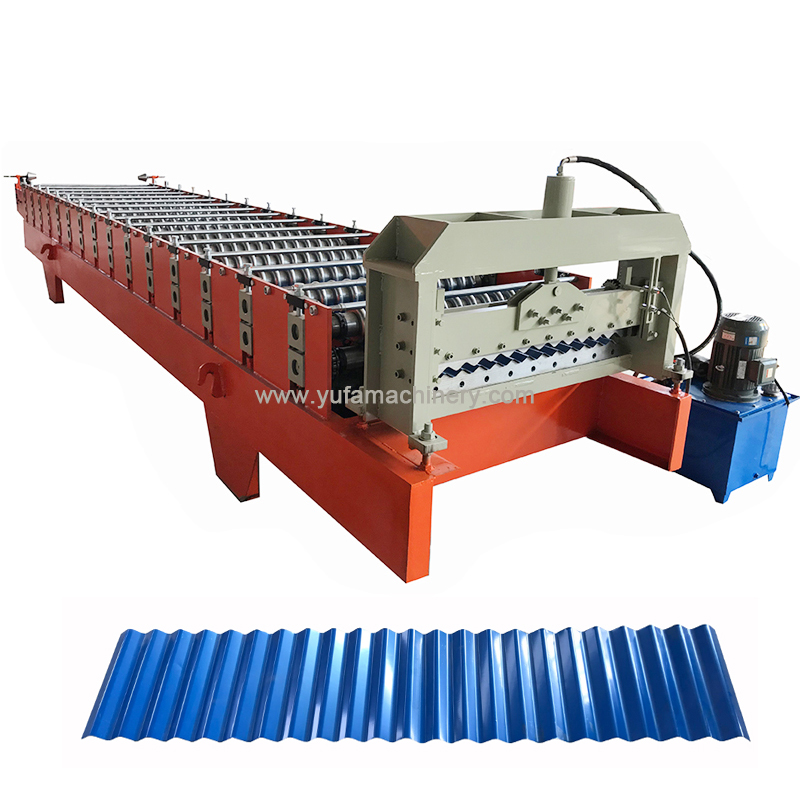

Corrugated roof tile wall panel roll forming machine
Corrugated roof tile wall panel roll forming machine

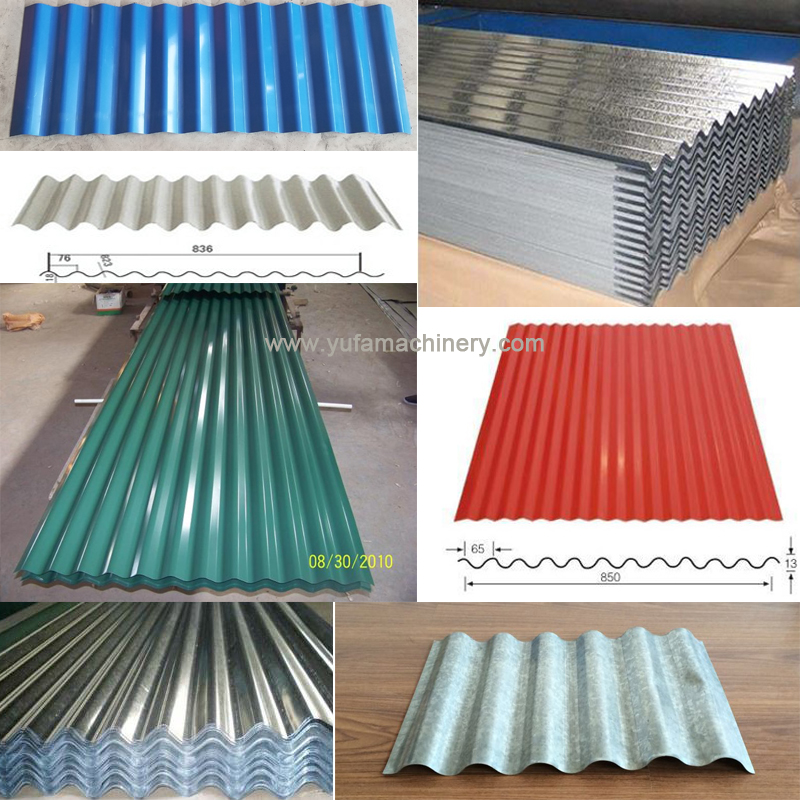

The corrugated roof tile wall panel produced by corrugatd roll forming machine look beautiful and modern .
They are widely used for the factory, hotel, exhibition ,roof of garden,centre and villa.
Click Here to check the video
Machine Main Parameters:
|
NO. |
Name |
Specification |
Mark | |
|
1. |
Raw material |
Thickness | 0.25-0.8mm | |
|
Material type |
GI&PPGI | |||
|
Feeding width |
According to customer | |||
|
2. |
Forming machine |
Roller station |
According to ur drawing |
|
|
Diameter of shaft |
75mm |
|||
|
Material of rollers |
45#steel |
|||
|
Surface of rollers |
Plate hard Chrome 0.05mm |
|||
|
Frame |
300H-Beam |
|||
|
Drive way |
By 1 inch chain |
|||
|
4. |
Cut Off |
Operation |
Automatic hydraulic type |
|
|
Material of blade |
CR12 steel |
|||
|
Oil pressure station |
Motor,oil pump,electromagnetic valve etc. |
|||
|
Motor of oil pressure station |
3KW |
|||
|
5. |
Power |
Main motor |
5.5KW |
|
|
voltage |
comized |
|||
|
6. |
Electric Box With touch screen |
PLC control system |
Delta Brand |
|
|
Frequency converter |
||||
|
Counter |
||||
|
On-Off |
||||
|
7. |
Language |
English |
||
|
8. |
Length of line |
10Meters |
||
|
9. |
Speed |
8-15M/Minute |
||

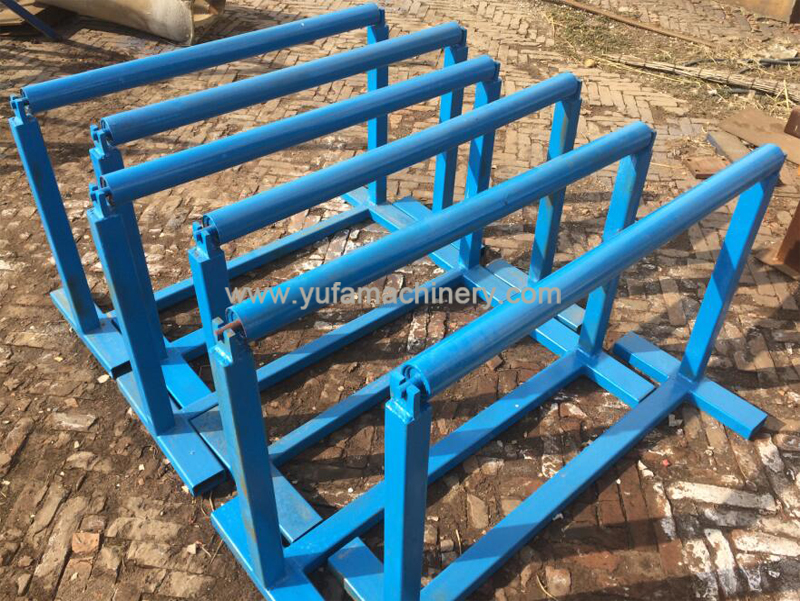

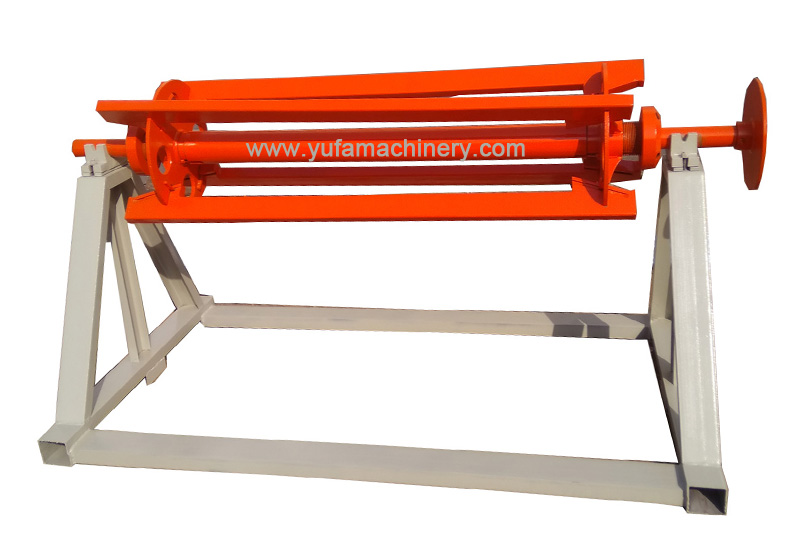

Decoiler &Reiving table for the corrugated wall panel roll forming machine
