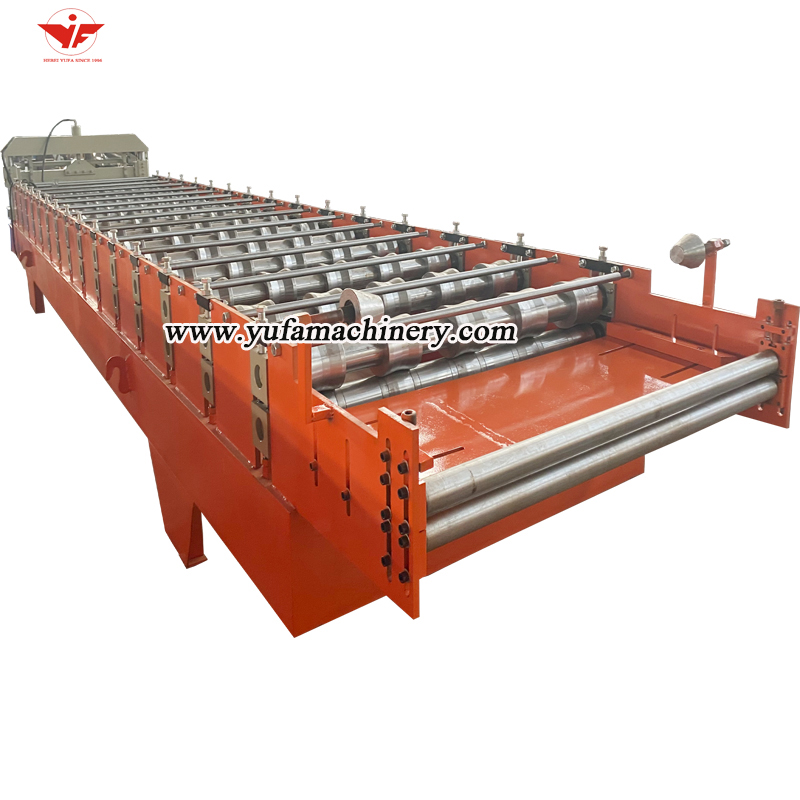

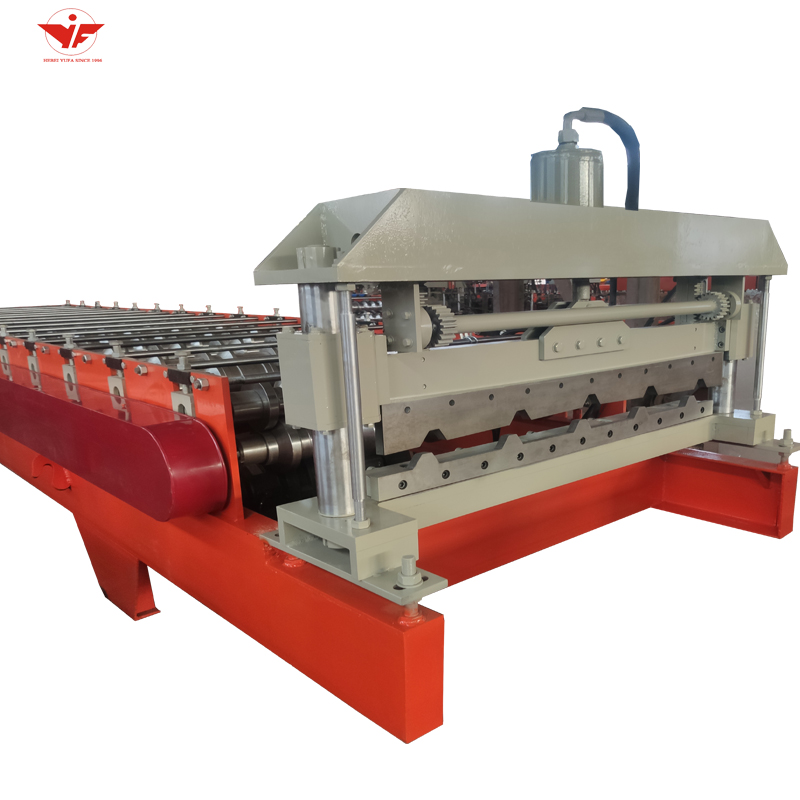

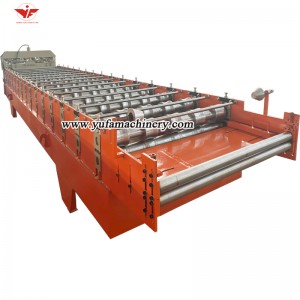

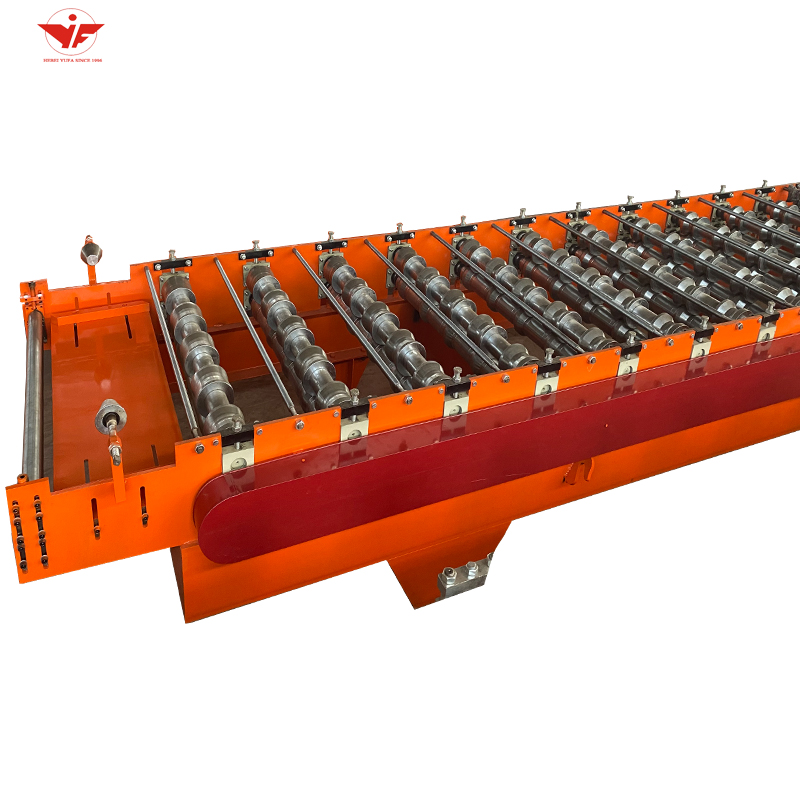

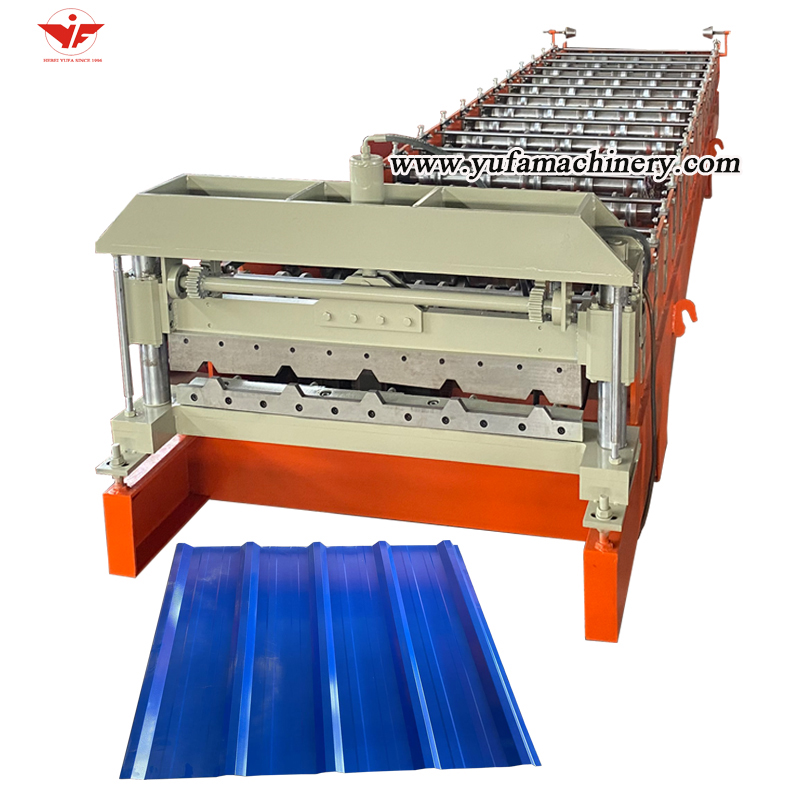

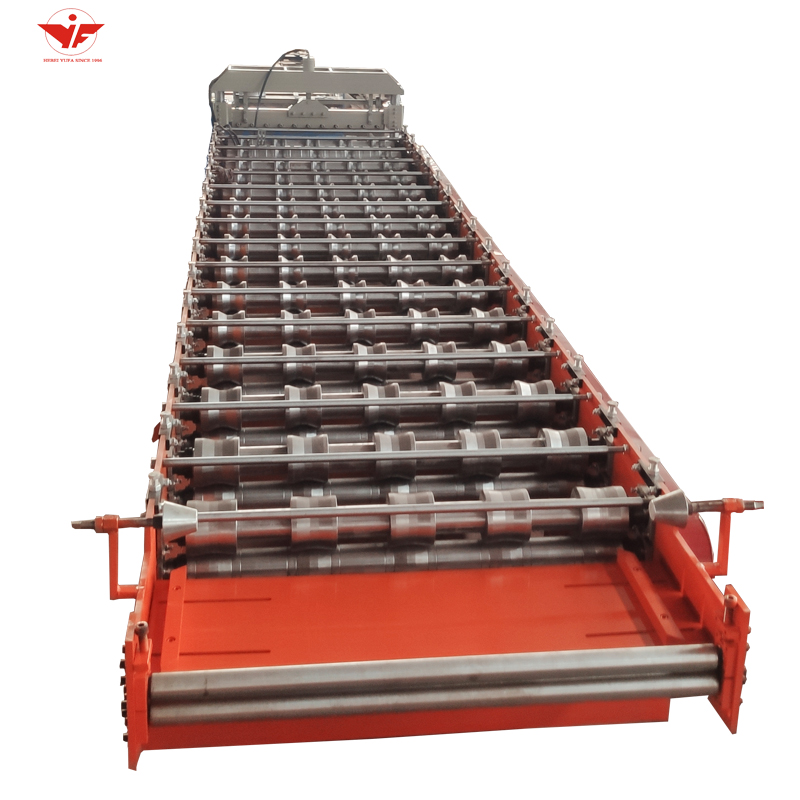

Iseal Metal corrugated roofing sheets cold roll forming machine price
This Iseal metal corrugated roofing sheets roll forming machine is comprised by decoil ,feeding shaft,forming part ,hydraulic automatic decoiler and receiving table . And this roll forming machine can use 0.3-0.8mm thickness metal coils ,feeding width is 1200/1220/1250mm.
Material
Effective width: 1200/1220/1250 mm
Material Thickness:0.3-0.8mm
Applicable material: Prepainted galvanized steel(PPGI)
with yield strength Q235-Q350Mpa
Main Machine
With feeding material guide, body frame made from H400 type steel by welding
Side wall thickness: Q235 t18mm ;
Rollers manufactured from 45# steel,CNC lathes,Heat Treatment,hard Chrome Coated
Shafts Diameter=ф80/ф85mm ,precision machined
Gear/Sprocket driving,about 18-step to form
Main Motor =5.5KW, Frequency speed control
Chain size: one inch with 18teeth
All the screw bolts with grade 8.8
Real forming speed 12m/min
